Thermo King TriPac Error Code: Fix It Fast (2026)
A flashing fault code on a Thermo King TriPac APU display usually means one of four things: low battery voltage, a coolant or oil sensor issue, a fuel system fault, or a control module communication error — and each one has a specific fix you can try before calling a tech.
- Most Thermo King TriPac error codes trace to battery voltage under 11.5V, low coolant, or a clogged fuel filter — not the compressor.
- Cycle power for 30 seconds before assuming a control board failure; this clears roughly a third of nuisance codes on 2016-2020 TriPac Evolution units.
- A failed CPC4 or ECM connection can mimic an APU fault code — check the module before replacing the APU. Buy verdict on a used TriPac Evolution APU: yes, if it's run-tested and priced under $1,200.
- Persistent low-oil-pressure codes after a reset mean the APU needs bench diagnosis, not another jump start.
Why this matters
A truck idling all night to run the cab AC burns 0.8 to 1 gallon of diesel per hour. A working auxiliary power unit cuts that to a fraction of a gallon, which is the entire reason fleets and owner-operators install them. When the TriPac throws a code and shuts down mid-route, the driver is back to idling the main engine or running hot in the sleeper — neither is acceptable in 2026 with idle restrictions active in over 30 states.
Most error codes are diagnosable in under 20 minutes with a multimeter and the operator's manual. The steps below cover the sequence a shop tech runs before pulling the unit, and where it makes sense to source parts through auxiliary power units for long-haul trucking instead of paying for a full replacement.
What you'll need
- Digital multimeter rated for 12V/24V DC systems
- TriPac Evolution operator's manual or the fault code chart taped inside most APU service panels
- Fresh 15-amp fuse for the control circuit
- Flashlight and a small wire brush for battery terminals
- 30 to 45 minutes of downtime
- A replacement APU on standby if the unit is past 8,000 hours — Thermo King TriPac units built before 2015 rarely survive a control board failure economically
The steps
1. Read and record the exact fault code before touching anything

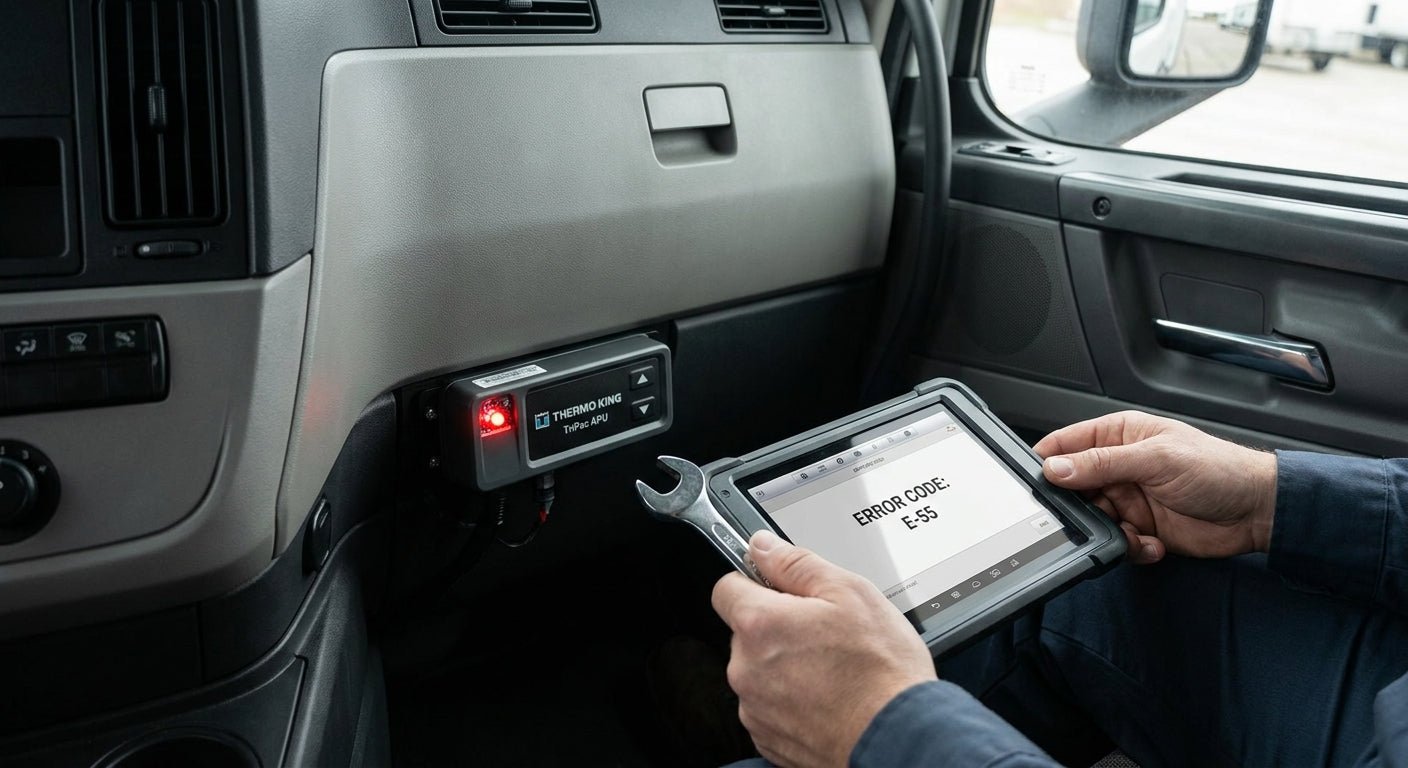

The TriPac display shows a two-to-three digit code or a flash sequence on the LED depending on the model year. Write it down before you cycle power — resetting first erases the code history the unit stored, and that history tells you if the fault is intermittent or constant.
Common mistake: clearing the code immediately to "see if it comes back." If it's intermittent, you just lost the only evidence of what triggered it.
2. Check battery voltage at the source, not the display
Most Thermo King TriPac error codes are voltage-related, not mechanical. Put the multimeter directly on the battery terminals with the APU running. Anything below 11.5V on a 12V system, or 23V on a 24V system, will throw a low-voltage fault and can shut the unit down mid-cycle.
Corroded terminals cause more false codes than actual battery failure. A wire-brush cleaning and terminal retorque resolves roughly a third of voltage-fault codes on units over three years old.
Common mistake: replacing the battery before checking the terminals and the ground strap. A $180 battery swap doesn't fix a $4 corroded ground.
3. Cycle power for a full 30 seconds
Shut the APU off at the panel, wait a full 30 seconds — not 5 — and restart. The control board needs that window to fully discharge capacitors and reboot clean. A quick off-on cycle often just re-triggers the same code.
If the code clears and stays clear through a full cooling or heating cycle, log it and move on. If it returns within the first 10 minutes of operation, treat it as a real fault, not a glitch.
4. Inspect the fuel filter and lines for a fuel-starvation code
TriPac diesel APUs pull fuel through a dedicated line, often tapped off the truck's main tank. A clogged filter or a kinked line starves the burner and throws a no-start or low-fuel-pressure code even with a full tank. Pull the filter and check for dark sediment — a filter that hasn't been changed in over 12 months is the most common cause of this code on older units.
Common mistake: assuming a full fuel gauge means the APU is getting fuel. The dedicated APU line can clog independently of the truck's main fuel system.
5. Check coolant and oil sensor faults with a physical dipstick check
Low-coolant and low-oil-pressure codes trigger from sensor readings, but the sensor itself fails almost as often as the fluid runs low. Pull the dipstick and check the coolant reservoir visually before assuming a sensor problem. If fluid levels are correct and the code persists, the sensor or its wiring harness is the likely culprit, not the pump.
6. Check the control module connection
A loose or corroded connector between the APU and the truck's control system can mimic an internal APU fault. This is especially common on Freightliner and International trucks where the APU ties into a body control or engine control module. If you're chasing a code that doesn't match anything in the fault chart, inspect the module connection before assuming the APU itself failed — a bad Freightliner CPC4 module throws communication faults that look like APU errors on the dash.
Common mistake: replacing the entire APU control board when the actual fault is upstream in the truck's own module.
7. Run a full test cycle before returning to service
Once you've addressed the suspected cause, run the APU through a complete heating and cooling cycle, minimum 20 minutes, watching the display the entire time. A code that doesn't return under load is fixed. A code that returns under load but not at idle usually points to a marginal battery or alternator charging issue that needs a shop visit.
Troubleshooting specific problems
- APU won't start at all, no display: check the 15-amp control fuse first — this fails more often than the starter motor on units over 60,000 hours.
- Code clears but returns after 2-3 hours: almost always a battery holding a marginal charge; load-test the battery, not just voltage-check it.
- Compressor runs but no cold air: low refrigerant charge, not a fault code issue — needs a certified tech with recovery equipment, not a DIY fix.
- Code appears only in cold weather below 20°F: glow plug or fuel heater fault; common on units running in northern routes through winter 2026.
- Display shows a code not listed in your manual: the manual may be for a different model year. Thermo King revised the TriPac Evolution fault code chart in 2018 — confirm your unit's build year before troubleshooting.
- Unit shuts down under load but idles fine: points to a charging system issue on the APU's own alternator, not the truck's.
Tools and resources
Keep these on hand before you're stuck roadside chasing a code:
- Fault code chart matched to your APU's exact build year
- Spare 15-amp control fuse
- Multimeter
- A sourcing plan for a replacement unit if the control board itself has failed — how to maintain a diesel auxiliary power unit covers the maintenance intervals that prevent most of these codes in the first place
- Access to parts for owner-operators running their own maintenance, covered in diesel truck parts for owner-operators
If the unit is past reasonable repair cost, a run-tested take-off Thermo King TriPac Evolution APU is usually the cheaper move than a full rebuild.
What to do next
If the code points to a control module issue rather than the APU itself, don't stop at the APU panel — a failing ECM or CPC4 connection upstream will keep throwing faults no matter how many times you reset the TriPac. How to diagnose a failing diesel engine ECM walks through the same voltage and connection checks applied to the truck's main control system.
FAQ
What does a Thermo King TriPac error code mean?
A Thermo King TriPac error code points to one of four common faults: low battery voltage, a coolant or oil sensor reading, a fuel delivery issue, or a control module communication error. The exact code number on the display narrows it down, but voltage and fuel filter checks resolve most of them.
How do I reset a Thermo King TriPac Evolution?
Shut the unit off at the control panel, wait a full 30 seconds, then restart. A quick cycle under 10 seconds often fails to clear the code because the control board hasn't fully discharged.
How much does it cost to fix a TriPac APU error code?
Most fixes — a fuse, a battery terminal cleaning, or a fuel filter — cost under $50 in parts as of 2026. A full control board replacement runs several hundred dollars in parts alone, which is when a used take-off unit becomes the cheaper option.
Is a used Thermo King TriPac APU worth buying instead of repairing?
Yes, if the used unit is run-tested and priced under roughly $1,200 — a run-tested 2016 TriPac Evolution APU typically lists around $1,050, which beats most control board repair bills on units over 60,000 hours.
Why does my TriPac APU shut off after running for a few hours?
This usually points to a battery holding a marginal charge rather than a hard fault. Load-test the battery rather than relying on a resting voltage reading, since a weak battery can pass a static voltage check and still fail under sustained draw.
Can a bad ECM cause a TriPac error code?
Yes. A failing or loosely connected control module on the truck side, including a faulty CPC4 module on Freightliner trucks, can throw communication faults that display as APU errors even when the TriPac itself is fine.
How often should a diesel APU be serviced to avoid error codes?
Fuel filters and battery terminals should be checked every 12 months or 1,000 operating hours, whichever comes first. Units serviced on that schedule throw far fewer nuisance codes than units running past 18 months without inspection.
What's the most common Thermo King TriPac fault in cold weather?
Glow plug or fuel heater faults spike below 20°F, especially on northern routes through winter months. These show up as no-start or fuel-pressure codes that clear once temperatures rise.
One last thing
The fault code chart printed in most TriPac Evolution manuals was revised in 2018 — if your unit predates that and you're cross-referencing a code list from a newer manual, you're diagnosing the wrong fault entirely. Confirm your build year before you trust the chart, not after you've swapped a part that didn't need swapping.
