How to Diagnose a Failing Diesel Engine ECM (2026)
An ECM misdiagnosis costs trucking companies thousands in unnecessary parts swaps — this guide walks through the exact checks that separate a bad ECM from a bad sensor, harness, or ground before you spend a dime.
TL;DR: A failing diesel engine ECM usually shows up as erratic fault codes (SPN/FMI combinations that don't match a known sensor failure), intermittent power loss, hard starts with no crank-no-start pattern, or a module that won't communicate on the J1939 data bus at all. Before replacing anything, pull codes with a scan tool, check battery voltage under load (should hold above 12.0V cranking), and test ECM ground resistance (under 0.5 ohms). If the ECM fails a static communication test and grounds/power check out clean, it's the ECM — not the harness. Diesel Engine King stocks tested Detroit, Cummins, and Freightliner control modules for exactly this scenario, and as of 2026 a run-tested used ECM still costs a fraction of new OEM replacement pricing.
Why this matters
A truck sitting in a shop bay is a truck not making money. Fleet managers who swap an ECM on a guess — without confirming the fault is actually in the module — end up paying twice: once for the wrong part, once for the right one. Diesel engine ECMs fail less often than sensors and wiring, but when they do fail, the symptoms mimic a dozen other problems: bad injectors, weak batteries, corroded connectors, even a failing alternator.
Getting the diagnosis right the first time matters more in 2026 than it did five years ago, simply because parts lead times on OEM electronics have stretched and shops can't afford to guess-and-check their way through a fleet vehicle down for repair. A structured diagnostic process gets you to the right part — new, used, or repaired — in one visit instead of three.
What you'll need
- A heavy-duty diagnostic scan tool that reads J1939 codes (Cummins INSITE, Detroit DDDL, or a universal tool like a Nexiq or Jaltest)
- A digital multimeter capable of reading DC voltage, resistance, and continuity
- Wiring diagrams specific to the engine/ECM model (Detroit DD15, Cummins ISX15, Volvo D13, Paccar MX13, etc.)
- A fully charged battery bank or working charging system — a weak battery alone can throw false ECM codes
- Dielectric grease and a terminal pick set for connector inspection
- Roughly 60-90 minutes for a full diagnostic pass, longer if you're chasing an intermittent fault
If the diagnosis points to the module itself, having a reference for Freightliner CPC4 module pricing and availability on hand saves a second call to the shop later.
The steps
1. Pull every fault code — don't stop at the first one

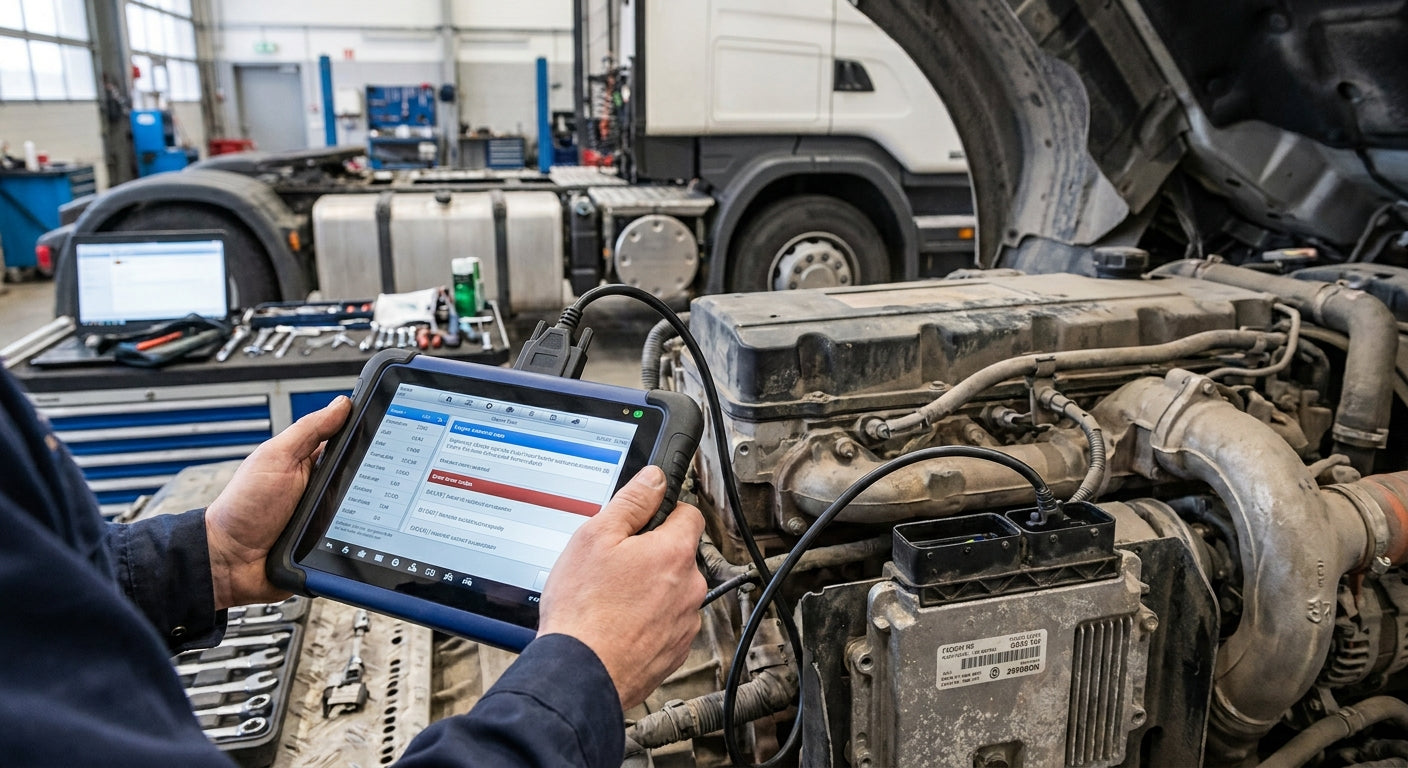

Connect the scan tool and record all active and inactive (historic) codes, not just the one triggering the check-engine light. ECM-related faults often throw multiple SPN/FMI combinations at once — a single bad ground can generate five or six unrelated-looking codes simultaneously.
Common mistake: techs clear codes before recording the full list, then can't tell if a fault was intermittent or resolved. Write everything down first, clear second.
2. Check battery and charging voltage under load
A diesel ECM needs stable voltage to function — most run on 12V or 24V systems depending on the truck. With the engine off, batteries should read 12.4V or higher; cranking voltage shouldn't drop below 9.6V for more than a second or two. Low or fluctuating voltage causes ECM resets, false codes, and intermittent no-start conditions that look exactly like ECM failure but aren't.
Common mistake: testing voltage at rest only. A battery that reads fine parked can collapse under cranking load — always test both states.
3. Inspect and test the ECM ground circuit
Ground resistance should read under 0.5 ohms between the ECM case and chassis ground. Corroded or loose ground straps are the single most common cause of ECM-mimicking symptoms in trucks over 300,000 miles. Clean every ground point, retorque, and retest before assuming the module is bad.
Common mistake: skipping this step because it seems too simple. A $4 ground strap causes more "ECM failures" than actual bad modules.
4. Test main harness continuity pin by pin
Using the wiring diagram for your specific engine, backprobe key ECM pins for continuity to sensors (coolant temp, oil pressure, boost pressure, crank/cam position). Look for open circuits, shorts to ground, or resistance readings far outside the manufacturer's spec range. On a Detroit DD15 or Cummins ISX15, a single chafed wire near the turbo or exhaust manifold can produce codes that look identical to internal ECM failure.
5. Run a static communication test
With the key on and engine off, confirm the scan tool establishes communication with the ECM on the first attempt. Intermittent or failed communication — especially combined with clean grounds and clean harness readings — points directly at the module itself. This is the strongest single indicator of true ECM failure versus a wiring or sensor issue.
Common mistake: assuming a "no communication" code always means the ECM is dead. Check the data bus wiring (J1939 twisted pair) for damage before condemning the module.
6. Check for water intrusion or physical damage
Pull the ECM and visually inspect the connector pins and housing for corrosion, water staining, or heat damage. Diesel ECMs mounted low on the engine block (common on Volvo D13 and Paccar MX13 setups) are prone to moisture intrusion after high-pressure washouts. Green or white corrosion on pins is a clear physical failure indicator independent of any electrical test.
7. Confirm the diagnosis with a known-good module swap when possible
If a shop has access to a tested spare ECM for the same engine family, swapping it in temporarily is the fastest way to confirm the diagnosis. If codes clear and the engine runs clean with the substitute module, the original ECM is confirmed bad — order the replacement with confidence instead of guessing.
Troubleshooting
- Engine cranks but won't start, no codes stored: Check for a dead ECM power relay or blown fuse before assuming module failure — this is a power supply issue in most 2026 field cases.
- Intermittent stalling with random codes: Almost always a ground or connector issue, not the ECM. Re-check every ground point under vibration/load simulation.
- ECM won't communicate at all with the scan tool: Confirm the diagnostic connector itself has power and ground before condemning the module — a blown fuse at the OBD port mimics total ECM failure.
- Codes clear then return within minutes: Points to an active harness fault (chafe, short) rather than a module problem. Trace the specific circuit tied to the recurring SPN.
- ECM overheats or shuts down after 10-15 minutes of running: Check mounting location for heat soak near the exhaust or DPF — this causes thermal shutdown that looks like ECM failure but resolves with a heat shield or remount.
- Multiple unrelated sensor codes appear simultaneously: Test the main chassis ground first. One bad ground point commonly triggers five or more unrelated fault codes at once.
Tools and resources
- J1939-capable scan tool (Cummins INSITE, Detroit DDDL, or universal aftermarket equivalent)
- Digital multimeter with resistance and continuity functions
- Engine-specific wiring diagrams
- Best replacement ECM for Detroit Diesel engines for module selection guidance once diagnosis is confirmed
- Freightliner Cascadia cab control module as a reference for a tested cab control unit if the fault traces to CPC rather than the engine ECM itself
What to do next
Once the diagnostic steps confirm the fault sits in the ECM itself — not the harness, ground, or power supply — the next move is sourcing a tested replacement rather than gambling on a full rebuild. For Freightliner-specific fault patterns and module cross-references, the guide on diesel engine ECM for Freightliner trucks walks through which module fits which chassis year.
FAQ
What are the first signs of a failing diesel engine ECM? Erratic fault codes that don't match a single known sensor failure, intermittent power loss, hard starts, and failed communication with a scan tool are the earliest signs. If grounds and wiring test clean and the ECM still won't communicate reliably, the module itself is the likely cause.
Can a bad ground mimic ECM failure? Yes, and it's the most common false positive in diesel diagnostics. A ground resistance reading above 0.5 ohms can trigger five or six unrelated fault codes that look exactly like internal module failure.
How much does it cost to diagnose a diesel ECM in 2026? Shop diagnostic time typically runs one to two hours depending on how many codes are stored and how accessible the ECM is on that engine model. A structured pin-by-pin check adds time upfront but avoids paying for a module that wasn't the actual problem.
Is a used ECM as reliable as a new one? A run-tested used ECM from a verified source performs the same as new for the vast majority of trucking applications, provided it's confirmed to match the exact engine software calibration. Diesel Engine King run-tests every ECM before listing it for this reason.
Should I replace the ECM or the whole wiring harness? Only replace the ECM if the static communication test fails after grounds, power, and harness continuity all test clean. Replacing a harness unnecessarily is a far more expensive mistake than replacing a ground strap.
Do Detroit, Cummins, and Volvo ECMs fail the same way? The underlying diagnostic process — codes, voltage, grounds, harness, communication test — is identical across Detroit DD15, Cummins ISX15, and Volvo D13 platforms, though the physical ECM mounting location and moisture exposure risk vary by engine.
How long does an ECM replacement take once diagnosed? A straight swap on most engine platforms takes under two hours once the correct module and software calibration are confirmed. Programming or calibration matching can add time depending on the engine family.
Can water damage alone cause total ECM failure? Yes — moisture intrusion into the connector pins is a standalone physical failure mode independent of any electrical test result, and it's common on ECMs mounted low on the block.
One last thing
The fastest diagnostic shortcut experienced techs use in 2026: check the ground straps before touching the scan tool. A five-minute ground inspection resolves more "ECM failure" complaints than any code reader ever will, and it costs nothing but a wrench and some sandpaper.
