How to Read a Spicer Eaton Differential Tag Number (2026)
Read the tag on a Spicer Eaton differential wrong and you'll order the wrong ring-and-pinion ratio, the wrong spline count, or a core that won't mate to your yoke. This guide walks through decoding the tag string itself, step by step, so you know exactly what you're buying before it ships.
- The spicer eaton differential tag number encodes model prefix, ratio suffix, and spline count in one stamped string.
- A 2.47, 2.64, or 3.31 ratio suffix on the tag is not optional information — it decides your top speed and fuel economy.
- Corroded or missing tags: count ring gear teeth against pinion teeth to back into the ratio yourself.
- Diesel Engine King verdict: never trust a phone-quoted ratio without matching it to the physical housing casting number.
Why this matters
A differential swap that looks identical on the outside can be a completely different unit once you check the tag. Two carriers with the same housing casting can carry different ratio suffixes — a 3.31 versus a 2.64 changes your cruise RPM by several hundred RPM at highway speed. Get the ratio wrong on a tandem rear and you're fighting a mismatched interaxle differential that chews up tires and drivetrain components within a few thousand miles.
Fleet buyers dealing with heavy-duty semi truck differentials run into this constantly when sourcing used cores in 2026 — sellers list "Eaton diff, good take-off" with no ratio, no spline count, and no serial. The tag is the only reliable source of truth on the unit until it's on a stand and torn down.
What you'll need
- Wire brush and degreaser (brake cleaner works fine)
- A flashlight or headlamp — tags are usually stamped in low-contrast metal
- A phone camera to photograph the stamp before it fades further
- A rag and shop gloves
- Digital calipers if you need to verify spline count manually
- Access to a manufacturer identification chart or the seller's listing for cross-reference
The steps

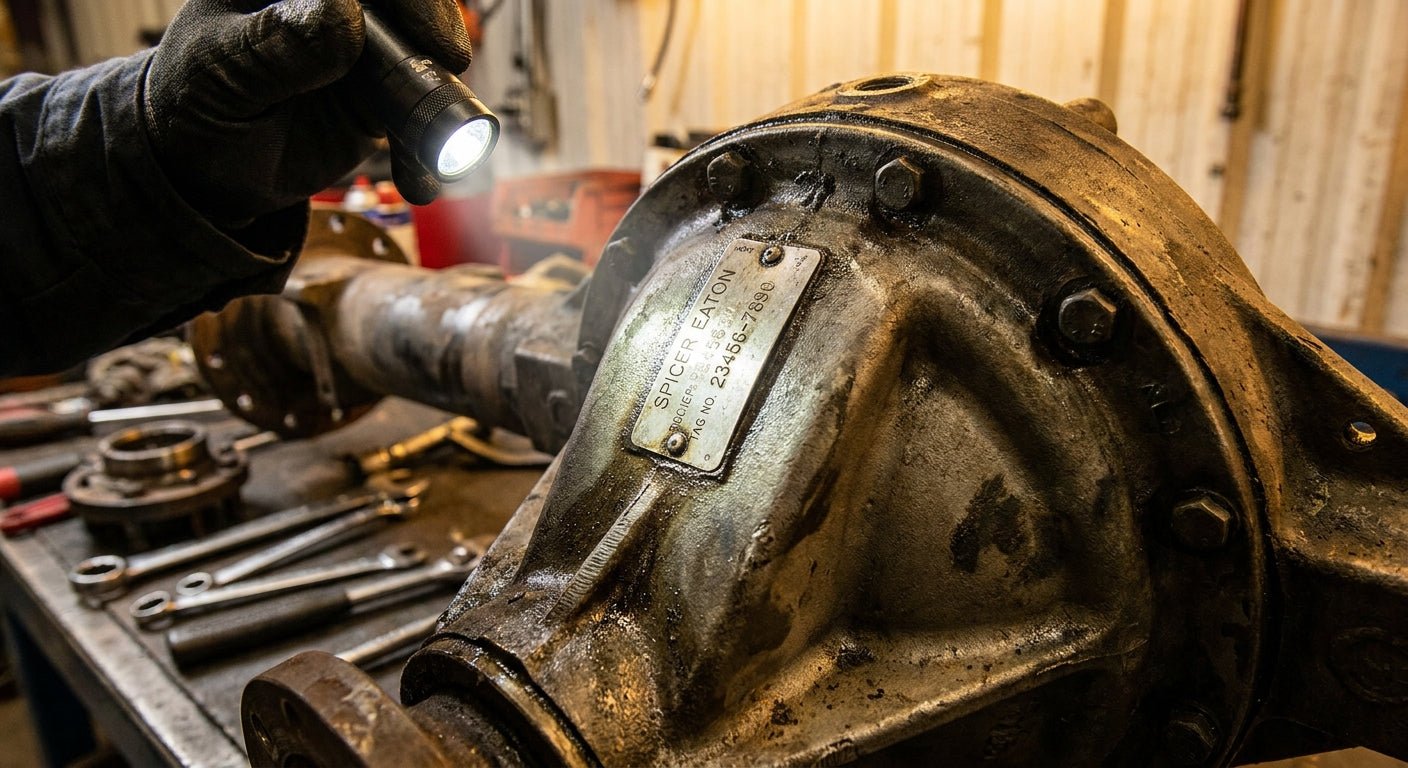

1. Locate the tag
Find the carrier before you do anything else. On most tandem rear differentials, the tag is riveted or stamped directly onto the top or driver's side of the center section housing, not the axle tubes. Some units carry a metal plate; others have the string stamped straight into the casting. Expect grease, road film, and rust to be sitting on top of it after years of service.
2. Clean the surface
Degrease the area and go over it with a wire brush until the stamped characters stand out under direct light. This is the step people skip, and it's the single biggest source of misread tags — a corroded "2.64" reads as "2.61" or "2.68" if you don't clean it properly first. Take your time here; five minutes of scrubbing saves you from ordering the wrong core.
3. Record the full string exactly as stamped
Write down or photograph the complete tag string, not just the part that looks like a ratio. A typical string includes a model prefix, a ratio suffix, and a serial or date code, often run together with no spaces. Transcribe it character-for-character before you try to interpret any of it — guessing at this stage is how buyers end up with the wrong spline count.
4. Decode the model prefix
The letters at the front of the string tell you the carrier family and capacity class — single reduction versus double reduction, front rear versus rear rear placement. This matters because a front-rear and rear-rear unit off the same axle series are not interchangeable even when the ratio matches. Confirm placement before you assume a used core fits your application.
5. Decode the ratio suffix
The numeric suffix on the tag expresses the ring-and-pinion ratio, usually as a two- or three-digit code that maps directly to a decimal ratio — "247" reads as a 2.47:1 ratio, "264" as 2.64:1, "331" as 3.31:1, "325" as 3.25:1. These exact ratios show up regularly in used inventory, and getting this digit wrong is the number one reason cores get returned.
6. Count the spline pinion and output
Cross-check the spline count against your yoke and driveshaft before you commit to a core. A 41-spline output on a differential carrier will not mate to a mismatched yoke, and this detail rarely shows up in a casual listing description. Measure it yourself with calipers if the tag doesn't spell it out clearly.
7. Cross-reference the serial and date code
The trailing characters on the tag are usually a serial number and a plant/date code. Use these to confirm the production year and, where possible, match the unit against the seller's stated mileage or take-off date. A date code that doesn't line up with the truck it supposedly came off is a red flag worth asking about before you buy.
8. Match the tag against the housing casting number
The tag and the casting number stamped into the housing itself should agree. If they don't, you're likely looking at a rebuilt unit with a mismatched carrier and housing — not necessarily bad, but you need to know that going in, and the seller should disclose it. Common mistake: buyers assume the tag alone tells the whole story and skip this cross-check entirely.
“If the tag doesn't match the housing casting number, don't trust the ratio you're quoted over the phone.”
Troubleshooting
Tag is rusted through or illegible. Count ring gear teeth against pinion teeth and calculate the ratio manually — divide ring gear tooth count by pinion tooth count to get the decimal ratio.
Tag is missing entirely. Pull the cover and inspect the casting number stamped into the housing itself; most manufacturers stamp a duplicate identifier there even when the riveted tag is long gone.
Two axles on a tandem show different ratios. This is a mismatch that will damage the interaxle differential over time — confirm both axles carry the same ratio suffix before you drive the truck any distance.
Seller's listed ratio doesn't match your photo of the tag. Trust the photo. Listings get copy-pasted from other units constantly, and the tag is the only verified source.
Spline count looks right but the yoke won't seat. Check for a difference between a 41-spline and a similar-looking 44 or 46-spline output — they look nearly identical until you try to mate them.
Tools and resources
- Wire brush, degreaser, flashlight, and digital calipers cover the physical inspection
- A manufacturer ratio-decoding chart for cross-referencing suffix codes
- The seller's own listing photos, compared directly against your tag photo
- A broader parts reference like best differentials for heavy-duty trucks if you're shopping ratios rather than just identifying an existing unit
If you've confirmed the ratio and spline count and you're shopping a replacement core, current 2026 inventory includes several ratios pulled straight from running gear — a 3.31 rear-rear carrier at $695, a 2.64 rear-rear at $450, a 2.47 front-rear OEM take-off at $850, and a 2.41 rear-rear assembly at $1,000.
Before any of these ship, run the same tag check you just learned on the listing photos — Diesel Engine King inspects and documents ratio and spline count on every differential core before it goes out the door in 2026.
What to do next
Once you've confirmed the differential tag, run through the same discipline on the rest of the drivetrain. If you're also verifying an engine core on the same truck, the process for identifying a Paccar MX-13 engine by serial number follows nearly the same logic — locate the tag, clean it, cross-reference the string against the physical unit.
FAQ
What does the spicer eaton differential tag number tell you?
The tag number encodes the model prefix, the ring-and-pinion ratio suffix, and a serial or date code in one stamped string. Reading all three correctly confirms the unit's placement, ratio, and production date before you buy it.
How do you read a differential ratio off the tag?
The numeric suffix maps to a decimal ratio — a code like 247 reads as 2.47:1, and 331 reads as 3.31:1. Match this against your current axle ratio before swapping in a replacement carrier.
What if the differential tag is rusted or missing?
Count the ring gear teeth and divide by the pinion tooth count to calculate the ratio manually. Many manufacturers also stamp a duplicate identifier into the housing casting even after the riveted tag is gone.
Is a 41-spline output the same across all Eaton and Spicer units?
No — spline counts vary between similar-looking carriers, and a 41-spline output will not mate to a 44 or 46-spline yoke. Verify spline count with calipers rather than assuming based on model family.
How much does a used heavy-duty differential cost in 2026?
Used rear-rear and front-rear carriers in common ratios run roughly $450 to $1,500 depending on ratio, condition, and whether it's an OEM take-off. Prices climb for less common ratios and verified low-mileage cores.
Can two axles on a tandem have different ratios?
They should not. Mismatched ratios between tandem axles damage the interaxle differential over time and cause uneven tire wear. Confirm both tags match before putting the truck back in service.
Do Spicer and Eaton differentials use the same tag format?
Both stamp a model prefix, ratio suffix, and serial code onto the carrier, though the exact character sequence varies by manufacturer and era. Always cross-reference the full string against a current identification chart rather than assuming based on prefix alone.
Where should you check the tag before buying a used differential?
Ask the seller for a clear photo of the stamped tag and the housing casting number before you pay for freight. A mismatch between the two is the clearest sign of a rebuilt or mixed unit.
One last thing
The cross-check most buyers skip is comparing the tag's ratio suffix against the casting number on the housing itself — not just against the seller's written description. A tag can be swapped or misread far easier than a casting number can be altered, and that single comparison catches most mismatched cores before they ship in 2026.
