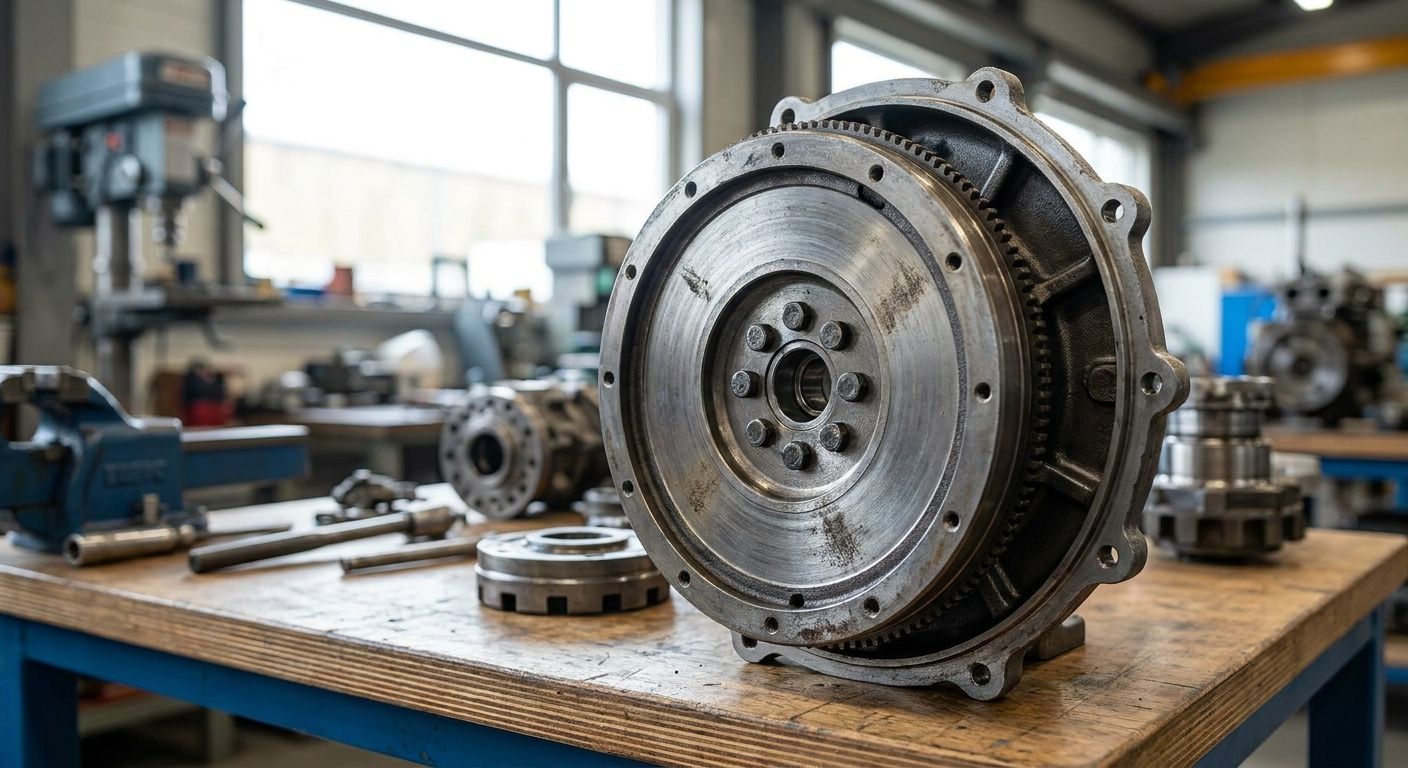

Flywheel and Flywheel Housing Diesel Engine Guide 2026
A cracked flywheel housing or a warped flywheel face will take out a clutch, a starter, or an entire rebuild if it goes back on the engine unchecked. This guide covers what actually matters when you're sourcing a flywheel and flywheel housing for a heavy-duty diesel engine in 2026 — sizing, ring gear condition, and the defects that mean skip, not resurface.
- SAE housing size must match the block and transmission bell — mixing sizes is the #1 flywheel and flywheel housing diesel engine mistake in 2026.
- Eaton Fuller FRO16210C 10-speed manual pairs with a standard SAE 2 clutch housing — Buy for owner-operator rebuilds.
- Volvo ATO2612D I-Shift automatic uses an integrated flywheel housing with no separate clutch disc — Buy for VNL platforms.
- Detroit DT-12DA automated manual needs a DD-series matched housing — Buy only with confirmed core inspection.
- Resurfaced flywheels beyond spec depth cause clutch chatter within months — inspect before you buy, not after.
Why this matters
The flywheel housing isn't a cosmetic bolt-on — it's the structural link between the engine block and the transmission, and it carries the pilot bearing that centers your input shaft. Get the SAE size wrong, or buy a cracked housing because the price looked good, and you're pulling the transmission again in 90 days.
Most fleets treat flywheel and housing sourcing as an afterthought to the engine or transmission purchase. That's backwards. A used diesel engine with a damaged housing is a parts-out job, not a drop-in rebuild, and the housing casting is one of the more expensive single castings to replace new in 2026.
Who this is for
This is for fleet maintenance leads swapping engines or transmissions, owner-operators doing their own clutch jobs, and independent shops rebuilding Class 8 diesels who need the flywheel and housing to match the rest of the drivetrain — not a generic "fits most" part.
What to look for in a flywheel and flywheel housing
SAE housing size and bolt pattern
Heavy-duty diesel flywheel housings follow the SAE J617 standard, sized 0 through 6, which sets the bolt circle diameter and pilot bore that mate to your transmission bell housing. A housing that's the wrong SAE number simply won't bolt up — no amount of gasket or shimming fixes a mismatched bolt pattern. Confirm the size against both the engine block and the transmission before you order anything, not after it arrives.
Flywheel type: solid vs dual-mass
A solid flywheel pairs with a standard friction-disc clutch; a dual-mass flywheel isolates torsional vibration and pairs with specific automated manual transmissions like the Detroit DT-12 or Volvo I-Shift. Swapping a solid flywheel into a dual-mass application causes drivetrain shudder and premature clutch wear. Know which type your transmission was engineered for before you shop.
Ring gear condition and starter engagement
The ring gear is pressed or welded onto the flywheel's outer edge and takes direct abuse from the starter every cold start. Chipped or rounded teeth cause hard starts and grinding, especially in the winter months when starter torque demand spikes. Inspect the full circumference — a seller photo of one clean section doesn't tell you about wear on the opposite side.
Core cracks, warpage and resurfacing limits
Flywheel faces can be resurfaced once, sometimes twice, before they fall below the manufacturer's minimum thickness spec. A housing with hairline cracks around the bolt bosses is a scrap-it decision, not a weld-it decision — cast iron cracks propagate under torque load. Run a straightedge across the clutch face before you accept any used flywheel as run-tested.
Pilot bearing bore and crankshaft fit
The pilot bearing bore in the center of the flywheel has to match your crankshaft's pilot diameter exactly. A bore that's been hogged out from a prior bearing failure won't hold a new pilot bearing true, which throws off input shaft alignment the moment the clutch engages. Measure it — don't take a seller's word that it's "standard."
Compatibility with your transmission input
Even a perfect flywheel and housing combination is useless if it doesn't match your transmission's input shaft spline count and clutch disc diameter. Cross-check the transmission model number against the flywheel and housing spec sheet before the engine goes back together — this is the step most rebuilds skip and regret.
Top picks: transmission pairings that dictate your flywheel housing spec
The transmission you're running determines the flywheel housing you need. These three platforms, sold as used units through Diesel Engine King, cover the most common flywheel housing pairings fleets deal with in 2026.
The workhorse pick — Eaton Fuller FRO16210C 10-speed transmission. This 10-speed manual with overdrive runs a conventional SAE 2 clutch housing and a solid flywheel with a standard friction disc — no dual-mass complexity. It's the most common pairing on rebuilt Class 8 trucks, and the housing sourcing is straightforward because the SAE size is widely stocked. Buy for any manual rebuild where you already have a solid flywheel core in good condition.
The automated pick — Volvo ATO2612D I-Shift automatic transmission, 2016. The I-Shift bolts to an integrated flywheel housing with no separate clutch pedal linkage — the housing itself carries the clutch actuator mounting points. That means the housing spec is tighter and less interchangeable than a manual setup, but on a VNL platform this is the factory-correct pairing. Buy if you're replacing a failed I-Shift housing on a matching VNL chassis, not adapting to a different platform.
The Freightliner-native pick — Detroit DT-12DA automated manual transmission. Built to pair with Detroit's DD-series engines, the DT-12DA needs a matched flywheel housing sized for the automated clutch actuator — a mismatched housing here throws shift-quality fault codes, not just a mechanical fit problem. Confirm the core's actuator mounting is intact before purchase. Buy, but only after the seller confirms a run-tested actuator interface on the housing.
What to avoid
- A flywheel housing that "looks fine" but hasn't been crack-checked. Surface rust and paint hide hairline cracks around bolt bosses — a magnetic particle inspection is cheap compared to a repeat teardown.
- A resurfaced flywheel with no depth measurement on record. A seller telling you "it's been resurfaced" without a thickness spec is telling you nothing — ask for the number.
- Buying a rear axle or differential, like an RT40-4N 3.08-ratio unit, expecting it to solve a flywheel housing mismatch. Axle ratio has zero bearing on flywheel housing fit — don't let a drivetrain upsell distract from the actual compatibility question.
Flywheel and housing verdict comparison
| Platform | Flywheel Type | Housing Style | Verdict | |---|---|---| | Eaton Fuller FRO16210C (10-speed manual) | Solid, friction disc | Conventional SAE 2 | Buy | | Volvo ATO2612D I-Shift, 2016 | Integrated, automated clutch | Factory-matched VNL housing | Buy | | Detroit DT-12DA automated manual | Dual-mass, automated actuator | DD-series matched housing | Buy with actuator confirmation |
FAQ
What is a flywheel housing on a diesel engine?
A flywheel housing is the cast bell housing that bolts the engine block to the transmission and encloses the flywheel and clutch assembly. It carries the pilot bearing bore that centers the transmission input shaft, so its SAE size and bolt pattern have to match both the engine and transmission exactly.
How do I know what SAE housing size I need?
Match the SAE housing size to your engine block's bolt pattern and your transmission's bell housing spec — sizes run 0 through 6 under the SAE J617 standard. Check the engine manufacturer's service documentation or the old housing's casting tag before ordering a replacement.
Can a flywheel be resurfaced instead of replaced?
Yes, but only down to the manufacturer's minimum thickness spec, and usually just once or twice over the flywheel's service life. A flywheel resurfaced past spec runs thin under clutch pressure and causes chatter and premature wear.
What's the difference between a solid and dual-mass flywheel?
A solid flywheel pairs with a standard friction-disc clutch and manual transmission, while a dual-mass flywheel isolates torsional vibration for automated manual transmissions like the Detroit DT-12 or Volvo I-Shift. The two are not interchangeable — installing the wrong type causes drivetrain shudder.
Is a cracked flywheel housing repairable?
Hairline cracks around the bolt bosses on a cast iron flywheel housing are generally not weld-repairable for heavy-duty diesel service — the crack propagates under torque load. Replace the housing rather than repair it when cracks are present.
How much does a used flywheel housing cost in 2026?
Pricing varies by SAE size, engine platform, and condition, so check current listings for your specific application rather than relying on a single number. Buying used through a supplier that run-tests and inspects cores before sale reduces the risk of a bad-fit or cracked unit.
Does the ring gear wear out separately from the flywheel?
Yes — the ring gear is a separate pressed-on or welded component that takes the brunt of starter engagement wear. A flywheel with a good clutch face can still have a chipped or rounded ring gear, so inspect both independently.
What transmission pairs with a dual-mass flywheel housing?
Automated manual transmissions like the Detroit DT-12DA and Volvo I-Shift ATO2612D are engineered around dual-mass or integrated flywheel housings, not conventional friction-disc setups. Cross-check your transmission model number against the housing spec before buying.
One last thing
The pilot bearing bore is the detail most buyers skip measuring, and it's the one that causes the most comeback failures — a bore worn even slightly oval throws off input shaft alignment the first time the clutch engages under load. Measure it with a bore gauge, not by eye, before the flywheel goes back on the crankshaft.
