Cummins 4BT Jeep Swap Kit: What Works in 2026

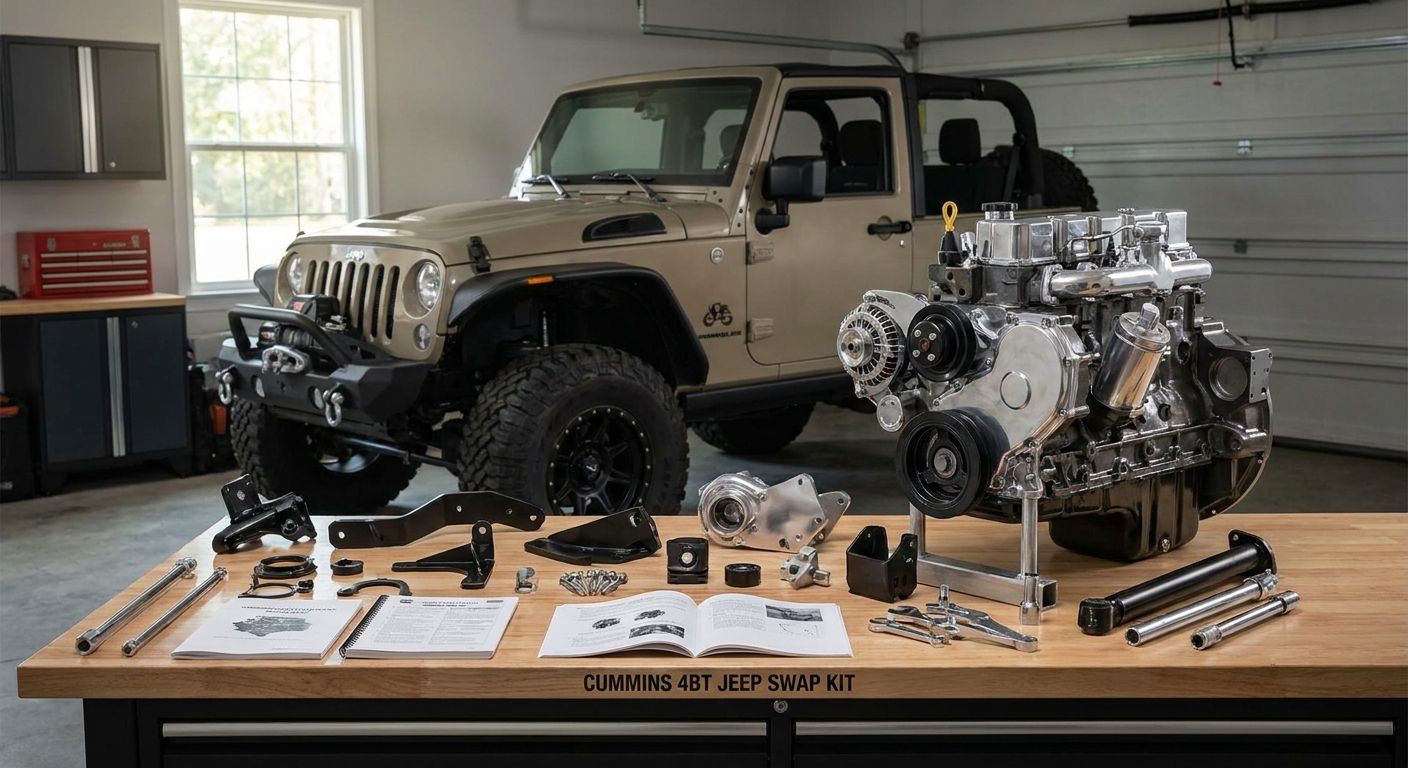

A Cummins 4BT Jeep swap kit for Wrangler builders is the collection of motor mounts, adapter plates, and brackets that lets a 3.9L Cummins diesel bolt into a TJ, YJ, or JK chassis, with the aim of putting a torque-heavy, mechanically simple engine under a rig built for low-range crawling and overlanding. Wrangler owners chasing this swap care less about horsepower numbers and more about reliability at idle, fuel range on long trails, and whether the engine bay geometry actually works without cutting the frame.
- A Cummins 4BT jeep swap kit fits the 3.9L inline-four into TJ, YJ, and JK Wranglers with bolt-in or lightly modified mounts.
- Factory 4BT output runs 105 to 160 hp and roughly 265 to 400 lb-ft depending on pump and turbo setup.
- The engine weighs close to 890 lbs dry, so axle and spring upgrades are not optional on most builds.
- Sourcing a run-tested used 4BT and matching adapter parts beats guessing on a low-mileage claim from a private seller.
- NV4500 and NP435 manual transmissions are the most common pairings for a 4BT jeep swap kit in 2026 builds.
Why this matters for Wrangler builders
A Cummins 4BT is an industrial and Dodge-derived engine, not a Jeep engine, so nothing lines up out of the box. Motor mounts, bell housing bolt pattern, oil pan depth, and accessory drive all fight the factory Wrangler engine bay in different ways depending on whether you're working with a TJ, YJ, or JK.
The upside is why builders keep doing it anyway: a 4BT idles reliably at low RPM for technical crawling, sips fuel on long overland routes, and has a mechanical simplicity that survives dust, water crossings, and years without a dealer scan tool nearby. That combination is why the swap shows up repeatedly in overlanding and expedition build threads through 2026, even with the fabrication work it demands.
Confirm your Wrangler platform and clearance first
Before any part gets ordered, nail down which Wrangler generation you're working with. TJ and YJ engine bays are narrower and shorter than JK bays, and steering box location changes the oil pan clearance problem on each one.
- Measure firewall-to-radiator-support distance before assuming a stock 4BT length fits
- Check steering box interference against the passenger side of the block
- Confirm frame width at the motor mount bolt locations
- Note whether the transfer case will need a shorter or longer output shaft
- Photograph the stock engine bay from three angles for reference during fabrication
Build or source motor mounts
The manual path is measuring your frame rails, fabricating steel plates, and welding brackets to match the 4BT's mounting bosses. Builders with a welder and a fabrication table can do this without buying a kit at all.
- Use 3/16" to 1/4" plate steel for mount brackets, not thinner stock
- Triangulate mounts to resist engine torque roll under low-RPM load
- Leave clearance for the oil filter and dipstick before final welding
- Test-fit the engine on a hoist before committing to weld positions
- Add urethane or poly engine mount bushings over rubber for a diesel's torque characteristics
Source a running 4BT and matching parts
Once the mounts are planned, the swap lives or dies on the engine itself. A used 4BT with unverified mileage is the single biggest risk in the whole build, and it's where fabrication time gets wasted on a core that needs a rebuild anyway.
Cummins 4BT engine parts for repower projects covers what to check on compression, injector condition, and accessory brackets before you commit an engine to a swap. Diesel Engine King lists used diesel engines and heavy truck parts nationwide, and a 4BT sourced for a repower project needs the same run-tested standard as a fleet replacement engine, not a lower bar because it's going into a Jeep.
- Pull compression numbers on all four cylinders before buying
- Verify the accessory brackets match your intended alternator and AC setup
- Confirm the bell housing bolt pattern before ordering an adapter plate
- Ask for run-test documentation, not just a mileage claim
- Budget for a starter and glow plug check even on a low-hour engine
Adapt the transmission
The 4BT's bell housing doesn't match a Jeep transmission without an adapter plate, and this step decides whether you keep a manual or go automatic.
- NV4500 and NP435 manual transmissions are the most common 4BT pairings
- Confirm input shaft spline count matches your adapter plate spec
- Check pilot bearing size against the 4BT flywheel before final assembly
- Verify clutch hydraulics clear the firewall in TJ and YJ tubs
- Plan the transfer case adapter separately if you're keeping factory 4WD
Manage cooling, fuel, and exhaust routing
A diesel under low-range load generates heat differently than the factory gas inline-six or V8 it replaced, and a stock Wrangler radiator usually isn't enough.
- Upsize the radiator core for sustained low-speed crawling heat load
- Route fuel lines away from exhaust heat sources near the transmission tunnel
- Confirm exhaust manifold clearance against the frame rail and steering box
- Check turbo placement doesn't interfere with the factory hood line
- Add an aftermarket fuel filter/water separator ahead of the injection pump
For builds that also see extended trail use at altitude or in extreme heat, turbochargers for overlanding and expedition rigs covers boost and heat management specific to that use case.
Verify weight distribution and axle capacity
An 890-lb engine is heavier than most factory Wrangler powerplants, and that weight sits differently depending on how far forward the mounts push it.
- Reweigh the front axle after the swap, not just before
- Upgrade front springs to match the added static weight
- Check steering box mounting bolts for added torque load
- Confirm brake capacity is rated for the added curb weight
Comparison: swap approaches for Wrangler builders
| Option | Best for | Key limitation | Verdict |
|---|---|---|---|
| Aftermarket bolt-in adapter kit | Builders wanting the fastest install path | Coverage is strongest for TJ/YJ, thinner for JK | Buy if your platform is covered |
| Custom fabricated mounts | Builders with welding and fab access | Time-intensive, no shortcuts on measuring | Buy if you have shop time |
| Sourced used 4BT + matched parts | Builders assembling their own combination | Requires verifying compression and brackets before install | Buy with run-test documentation |
| Full turnkey diesel Wrangler purchase | Builders who want to skip the swap entirely | Rare to find, and you inherit someone else's fabrication choices | Hold unless inspected in person |
Common mistakes Wrangler builders make on a 4BT swap
- Skipping the oil pan clearance check against the steering box, which forces a second fabrication pass after the engine is already mounted
- Buying a 4BT on a mileage claim alone without a compression check, then discovering injector wear mid-swap
- Underestimating cooling needs for sustained low-RPM crawling, not just highway cruising
- Ignoring axle and spring capacity after adding roughly 890 lbs of engine weight up front
- Mismatching the bell housing and adapter plate before confirming the exact 4BT block variant
The engines built for repower and swap projects need the same scrutiny a fleet manager applies to a replacement Cummins for a truck — that standard doesn't lower because the destination is a Jeep instead of a semi.
FAQ
What is a Cummins 4BT jeep swap kit?
A Cummins 4BT jeep swap kit is the set of motor mounts, adapter plates, and brackets used to fit the 3.9L Cummins inline-four into a Wrangler chassis. Coverage varies by generation, with TJ and YJ builds having more aftermarket kit options than JK.
Will a 4BT fit a Jeep Wrangler TJ without cutting the frame?
Most TJ 4BT swaps avoid frame cutting when the mounts are built to the stock frame rail width, but steering box clearance against the oil pan almost always needs attention. Measure your specific frame before assuming a bolt-in fit.
How much horsepower does a Cummins 4BT make?
A factory Cummins 4BT makes roughly 105 to 160 horsepower and 265 to 400 lb-ft of torque depending on the injection pump and turbo configuration. Output varies more by pump calibration than by year alone.
Is a 4BT swap better than a 6BT for a Wrangler?
The 4BT is lighter and shorter than the 6BT, which makes it the more common choice for Wrangler engine bays where space is tight. The 6BT offers more torque but adds length and weight that push Wrangler front axles and steering geometry harder.
What transmission works with a 4BT in a Jeep?
NV4500 and NP435 manual transmissions are the most common pairings for a 4BT swap because their bell housing patterns adapt cleanly with a plate. Automatic pairings exist but require a separate adapter and controller setup.
How much does a Cummins 4BT engine weigh?
A Cummins 4BT weighs approximately 890 lbs dry, heavier than most factory Wrangler gas engines. That added front weight is why front spring and axle upgrades come up in nearly every swap writeup.
Do I need a lift kit for a 4BT swap?
A lift isn't required for the engine to physically fit, but the added front weight often settles factory springs low enough that a lift or heavier spring rate becomes necessary for ride height and clearance. Reweigh the front axle after the swap to confirm.
Where can I buy a used Cummins 4BT engine for a swap?
Used 4BT engines come from industrial equipment teardowns, Dodge Ram donor trucks, and diesel parts suppliers who run-test before sale. Compression testing and accessory bracket verification matter more than the seller's mileage claim.
One last thing
Most Wrangler builders fixate on horsepower numbers when the real failure point on a 4BT swap is the bell housing-to-adapter match — get that wrong and every other part of the build stalls until a second plate is machined. Verify the exact 4BT block variant and bell housing pattern before a single mount gets welded, in 2026 that single check still saves more rework than any other step in this guide.
