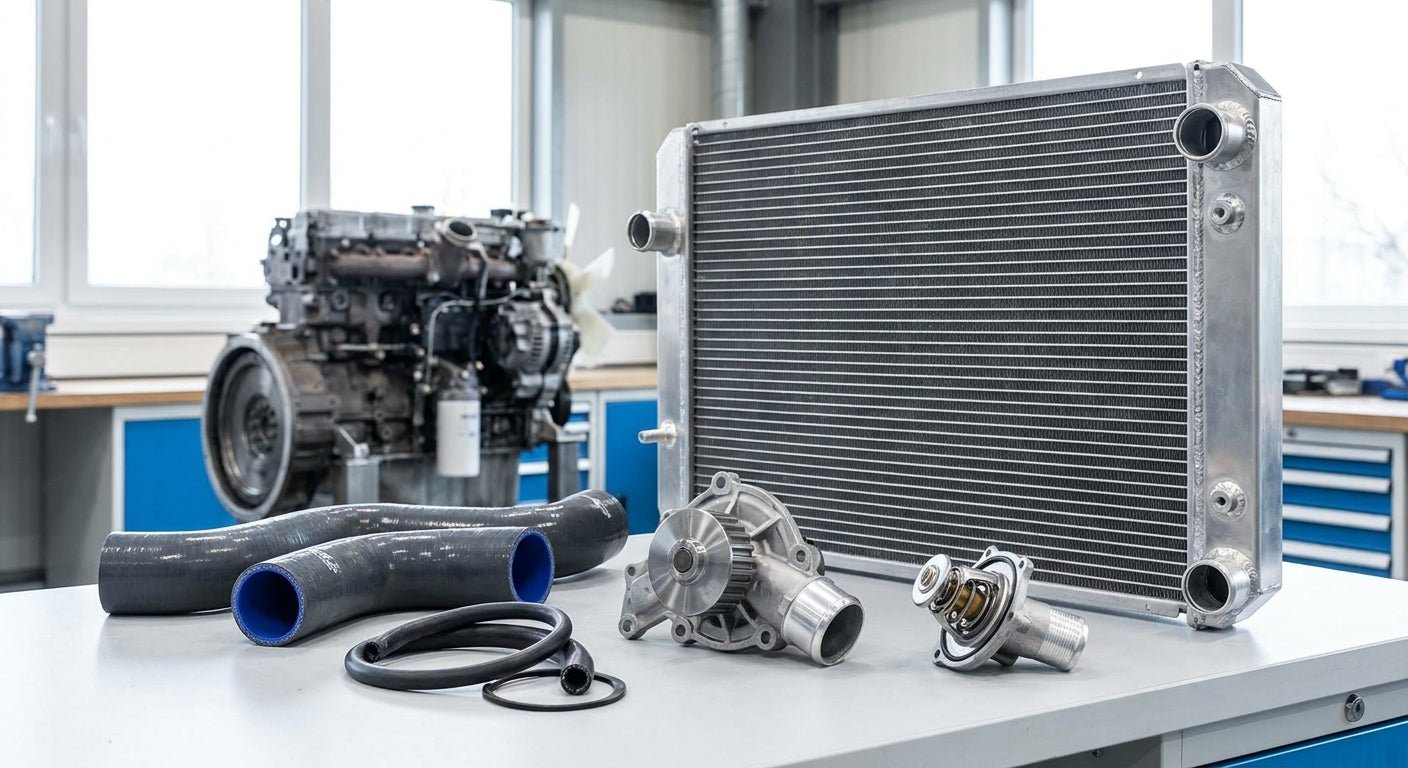

Cooling System Parts for Diesel Engines: 2026 Guide
Cooling system parts for heavy-duty diesel engines fail more often from mismatched specs than from bad luck, and a $40 thermostat with the wrong opening temperature can cook a $15,000 rebuild in under a week. This guide breaks down what actually matters when you're sourcing radiators, water pumps, thermostats, fan clutches and charge air coolers for a Class 8 truck in 2026.
- Cooling system parts for diesel engines must match engine displacement and coolant flow rate, not just bolt up to the block.
- OEM-spec water pumps rated 180+ GPM are the safe pick for line-haul Cummins and Volvo D13 applications — Buy.
- Viscous fan clutches engaging at 200-210F outlast air-actuated units in stop-and-go fleets, but cost more upfront.
- Universal aftermarket radiators without cross-flow cores are a Skip for anything pulling over 60,000 lbs GCW.
- Charge air coolers with cracked end tanks cause boost leaks that look like turbo failure — inspect before you replace the turbo.
Why this matters
A diesel engine running 5-10F hotter than spec loses ring seal and accelerates oil breakdown, and that damage doesn't show up on a dash gauge until it's expensive. Fleet maintenance data consistently shows coolant-related failures as one of the top causes of unscheduled roadside calls, and most of those failures trace back to a thermostat, water pump or fan clutch that didn't match the engine's actual heat load. Buying the wrong cooling system parts for diesel engines doesn't just cost you the part twice — it costs you the engine underneath it.
Diesel Engine King sees the same pattern across used diesel engine inventory: engines pulled for overheating that had nothing wrong internally, just a collapsed radiator hose or a stuck-closed thermostat. Getting the cooling system spec right the first time is cheaper than diagnosing a phantom internal failure later.
Who this is for
This guide is built for fleet maintenance managers, owner-operators, and independent shop techs sourcing cooling system components for Class 8 diesel engines — Cummins ISX15, Volvo D13, Detroit DD15, Caterpillar C15, and comparable platforms. If you're running a truck through cold-climate winters, extreme summer heat, mountain grades, or heavy tow weight, the cooling system spec you pick changes based on that duty cycle, not just the engine model number.
What to look for in cooling system parts for diesel engines
Radiator core sizing matched to displacement
A radiator core built for a 10.8L engine won't dissipate enough heat on a 15L Cummins X15 running at 500+ HP, even if the mounting bolts line up. Cross-flow, multi-row cores rated for the specific displacement and horsepower class are non-negotiable on anything hauling over 60,000 lbs GCW. Undersized cores are the single most common reason a new radiator still runs hot within six months.
Water pump flow rate
Water pump flow, measured in gallons per minute (GPM), needs to match OEM spec for the engine, not just the physical pump housing. A pump flowing 150 GPM instead of the OEM-rated 180+ GPM on a Volvo D13 will run adequately at idle and fall behind under sustained highway load. Flow rate mismatches are invisible until the truck is climbing a grade in July at 2026 ambient temperatures pushing 100F.
Thermostat opening temperature
Modern diesel ECMs run tighter thermostat calibration than engines built even ten years ago, often opening between 180F and 195F depending on emissions strategy. Installing a generic 160F thermostat because it's on the shelf throws off the ECM's fuel and DEF dosing logic, and can trigger derates that look like an electrical fault. Match the thermostat to the ECM calibration, not just the housing bolt pattern.
Fan clutch engagement type
Viscous fan clutches engage gradually as temperature rises, typically locking in around 200-210F, and hold up better in stop-and-go regional or municipal fleets. Air-actuated or electronic clutches respond faster and save fuel on steady highway line-haul but wear out sooner in urban duty cycles. Pick the clutch type for the route, not the price tag.
Charge air cooler condition
A charge air cooler (CAC) with a cracked end tank or pinhole leak drops boost pressure and mimics turbocharger failure — technicians replace turbos on trucks that actually needed a $300 CAC. Boost-leak testing before condemning a turbo saves real money on diagnosis. Charge air coolers see less coolant flow directly but sit squarely inside the same heat-management system.
Coolant chemistry compatibility
Extended Life Coolant (ELC) and Supplemental Coolant Additive (SCA) systems are not interchangeable, and mixing them accelerates water pump seal failure and radiator core corrosion. Check what the engine was running before swapping cooling system parts, especially on a used or remanufactured Detroit or Cummins block where service history is incomplete.
Top picks by duty cycle
The cold-climate pick — coolant and thermostat kit for winter operation. Fleets running snow removal, municipal plow routes, or upper-Midwest line-haul need thermostats and coolant mixes rated for sustained sub-zero starts, not just freeze-point antifreeze. A -34F coolant concentration paired with a block heater and the correct ECM-matched thermostat keeps warm-up cycles under 10 minutes instead of 25. Cold-weather cooling system setups get covered in detail in the guide on diesel truck parts for cold climate fleets. Verdict: Buy for any fleet running below 20F ambient for more than 60 days a year.
The extreme-heat pick — charge air cooler and fan clutch upgrade. Reefer units and long-haul trucks idling in 100F-plus yards need a viscous fan clutch engaging at the low end of the 200-210F range and a CAC free of scaling. Running a diesel engine above 220F coolant temp for more than a few minutes accelerates head gasket failure. The specifics on managing extreme-heat cooling loads are in the reefer unit extreme heat guide. Verdict: Buy for southern-route and reefer fleets; Consider for everyone else running summer highway miles.
The OEM-match pick — water pump and radiator sized to engine platform. For engines like the Volvo D13, matching OEM GPM flow and radiator row count keeps warranty coverage intact on a remanufactured or used engine swap. Aftermarket parts sold as universal fit frequently undersize the core by one row to cut cost. Verdict: Buy OEM-spec when installing on a used engine with unknown cooling history; Skip universal cores rated below the engine's original spec.
The budget pick — rebuilt fan clutch instead of new. A rebuilt viscous fan clutch, properly bench-tested for engagement temperature, runs $150-$250 less than new and performs identically if the core wasn't damaged. This only works when the rebuild includes an actual engagement-temperature test, not a visual inspection. Verdict: Consider for shops with a trusted rebuilder; Skip if there's no test documentation.
What to avoid
- Universal-fit radiators with no row-count spec listed — they look identical to OEM cores in a photo but often run one row short, which only shows up under sustained load.
- Thermostats sold by temperature range instead of exact opening point — a listing that says 160-180F instead of a fixed number means the manufacturer isn't controlling tolerance, and ECM-calibrated engines need a fixed number.
- Fan clutches with no engagement-temperature spec on the listing — if the seller can't tell you the lock-up temperature, assume it wasn't tested.
Verdict comparison
| Part | Key spec to check | Good number to target | Verdict |
|---|---|---|---|
| Radiator core | Row count vs. OEM | Matches original row count | Buy OEM-spec |
| Water pump | Flow rate (GPM) | 180+ GPM on 13-15L engines | Buy OEM-spec |
| Thermostat | Opening temperature | Fixed number, 180-195F | Buy exact match |
| Fan clutch (viscous) | Engagement temp | 200-210F lock-up | Buy or rebuilt-tested |
| Charge air cooler | End tank condition | No cracks, passes boost test | Buy after leak test |
FAQ
What are the most common cooling system parts for diesel engines that fail first?
Water pumps, thermostats and fan clutches fail most often on heavy-duty diesel engines, usually from seal wear or incorrect temperature calibration rather than manufacturing defects. Radiators typically fail from external damage or internal scaling rather than age alone.
How much does it cost to replace a diesel engine cooling system in 2026?
A full cooling system replacement of radiator, water pump, thermostat, and fan clutch runs roughly $1,500 to $3,500 in parts on a Class 8 diesel engine as of 2026, with labor adding several hundred more depending on the shop. Individual components like a water pump alone typically run under $500.
Is a viscous fan clutch better than an electric fan clutch for diesel trucks?
Viscous fan clutches hold up better in stop-and-go or municipal duty cycles because they engage gradually with temperature, while electric or air-actuated clutches respond faster and save fuel on steady highway routes. Pick based on route type, not price.
Can a bad thermostat cause a diesel engine to overheat?
Yes, a thermostat stuck closed or opening at the wrong temperature is one of the most common causes of diesel engine overheating. It restricts coolant flow to the radiator even when the engine needs it, and mismatched opening temperatures can also confuse ECM fuel and DEF dosing logic.
How do I know if my charge air cooler is leaking instead of my turbocharger?
A boost-leak test isolates the charge air cooler from the turbocharger and will show pressure drop at the CAC connections or end tanks if that's the source. Many techs replace a turbocharger unnecessarily when a cracked CAC end tank was the actual problem.
What coolant should I use in a used diesel engine with unknown service history?
Flush the system completely and start fresh with a single coolant chemistry, either Extended Life Coolant or a conventional SCA-treated coolant, rather than topping off with an unknown mix. Mixing chemistries accelerates water pump seal and radiator corrosion.
Do OEM cooling system parts last longer than aftermarket on diesel engines?
OEM-spec parts matched exactly to flow rate, core size, and opening temperature generally outlast generic aftermarket parts sold as universal fit, because tolerance control is tighter. Aftermarket parts built to the same spec numbers perform comparably, but many low-cost listings don't list the actual spec.
How often should cooling system parts be inspected on a heavy-duty diesel engine?
Fan clutches, hoses, and radiator cores should get a visual and function check at every PM interval, typically every 15,000-25,000 miles, with a full coolant chemistry test at least once a year. Fleets running extreme heat or cold routes should check more frequently.
One last thing
A charge air cooler with a boost leak accounts for a surprising share of turbocharger replacements that didn't need to happen — run a boost-leak test before condemning a turbo on any diesel engine losing power under load in 2026. It takes fifteen minutes and costs nothing compared to a turbo you didn't need.
